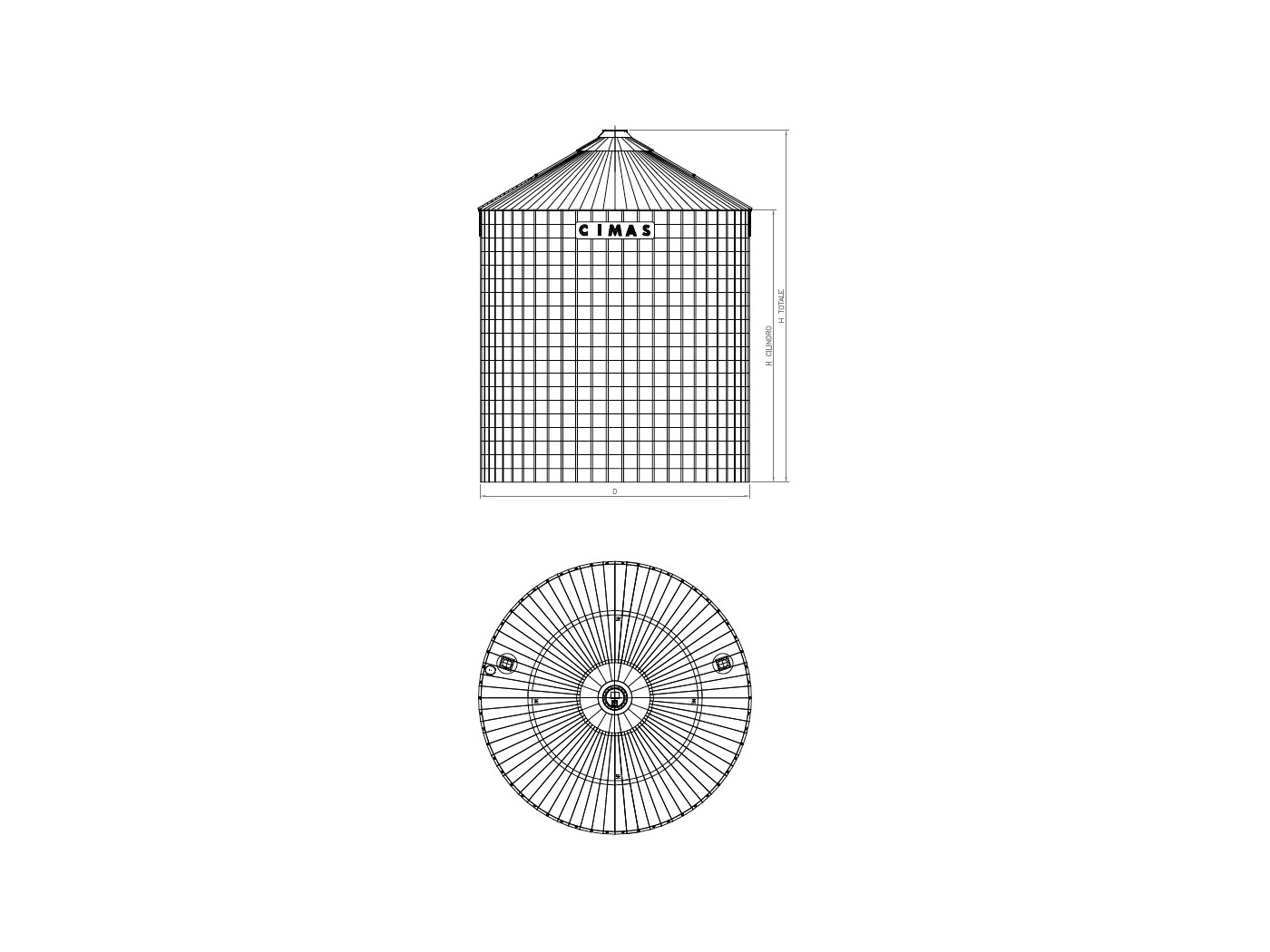

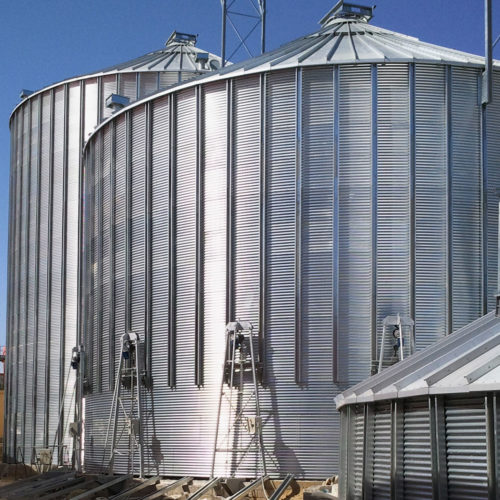

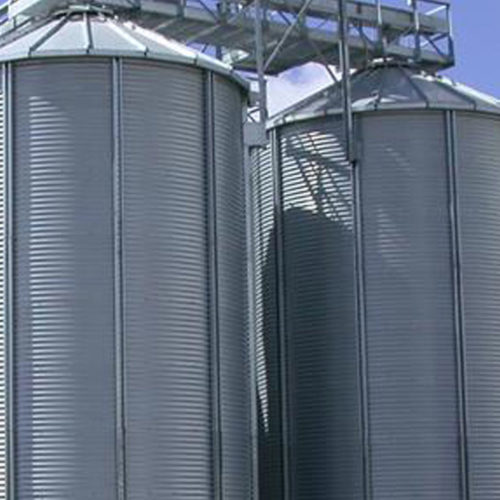

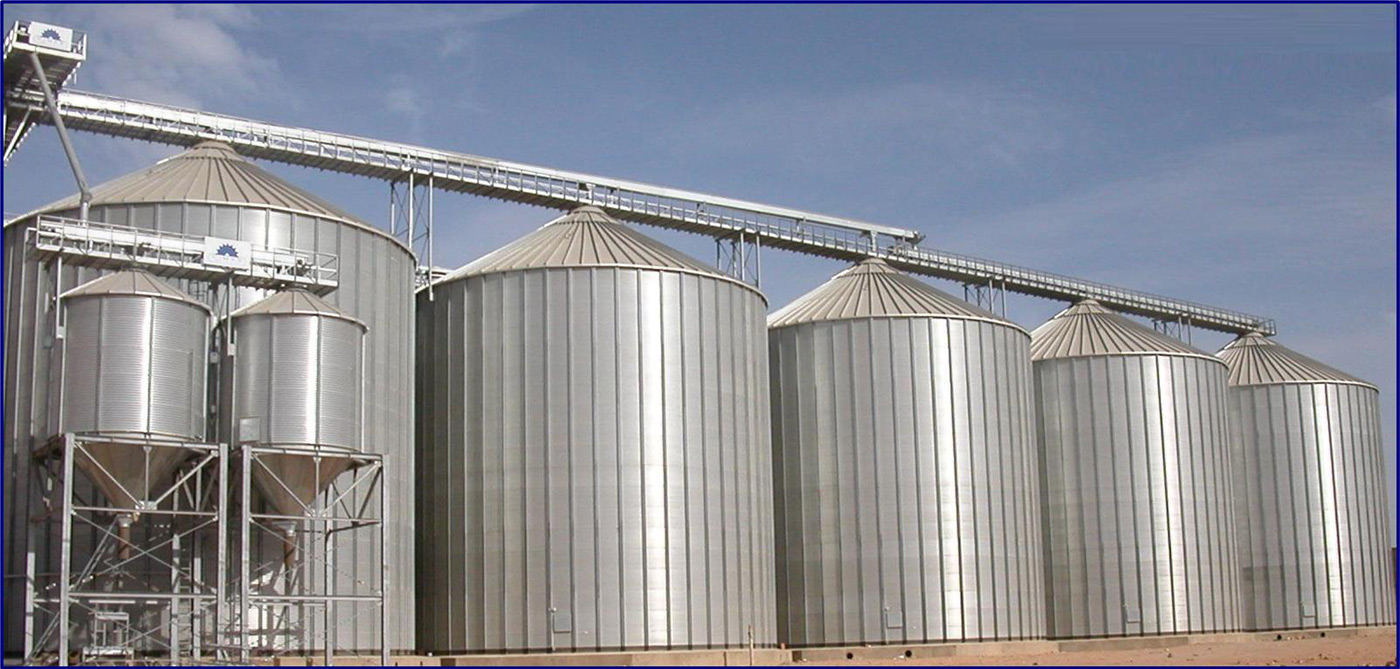

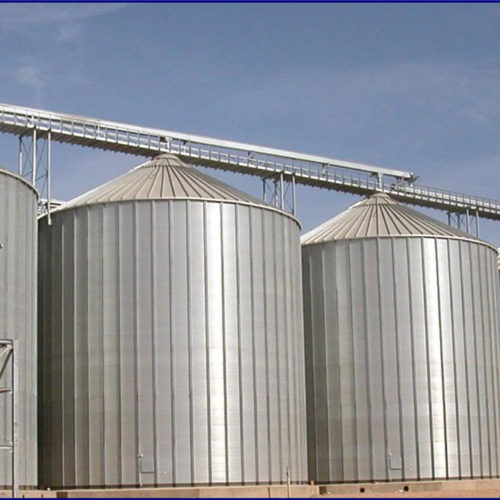

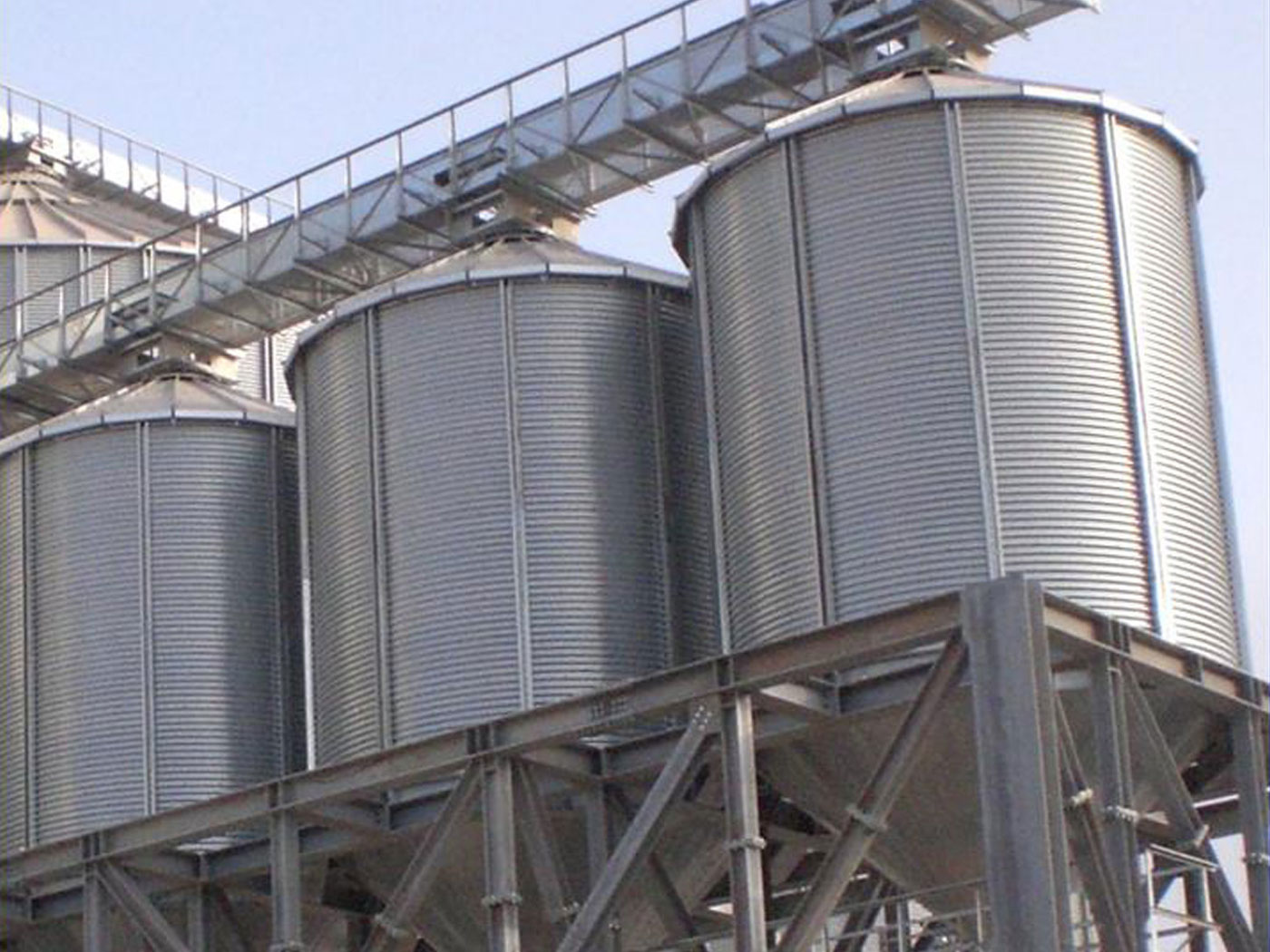

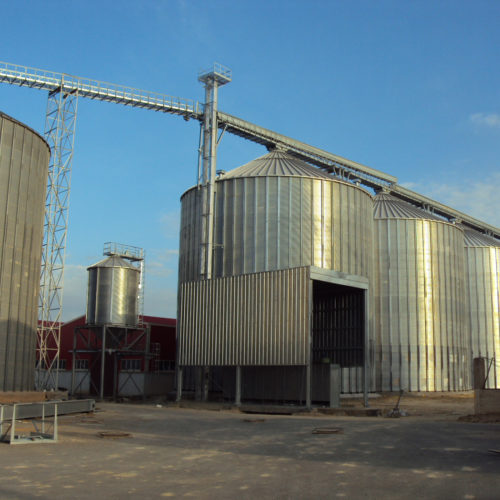

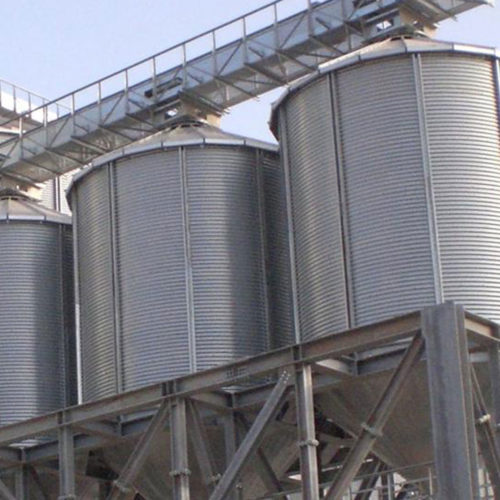

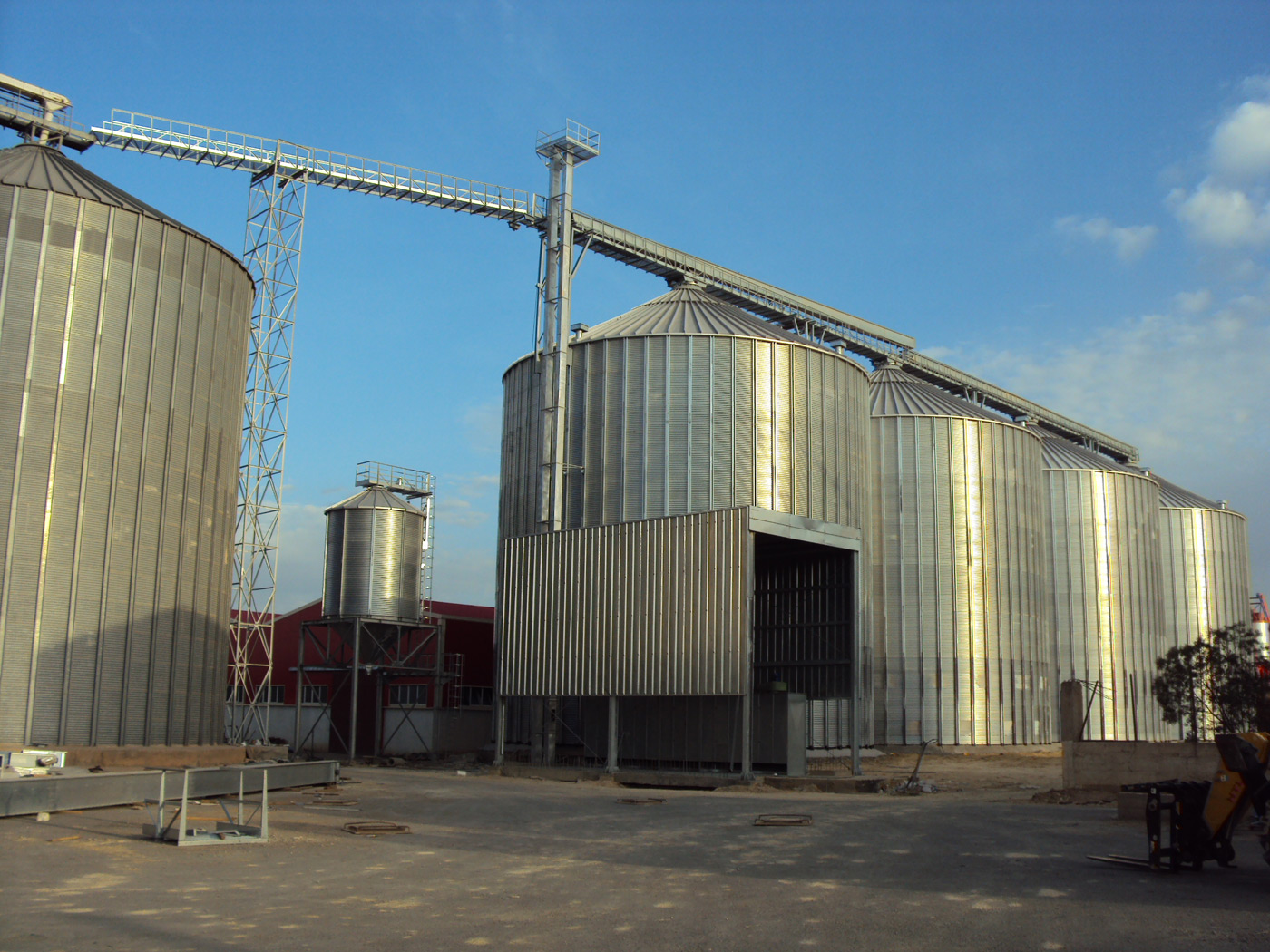

Silo mod. SLZ

The silos mod. SLZ consists of:

Construction features::

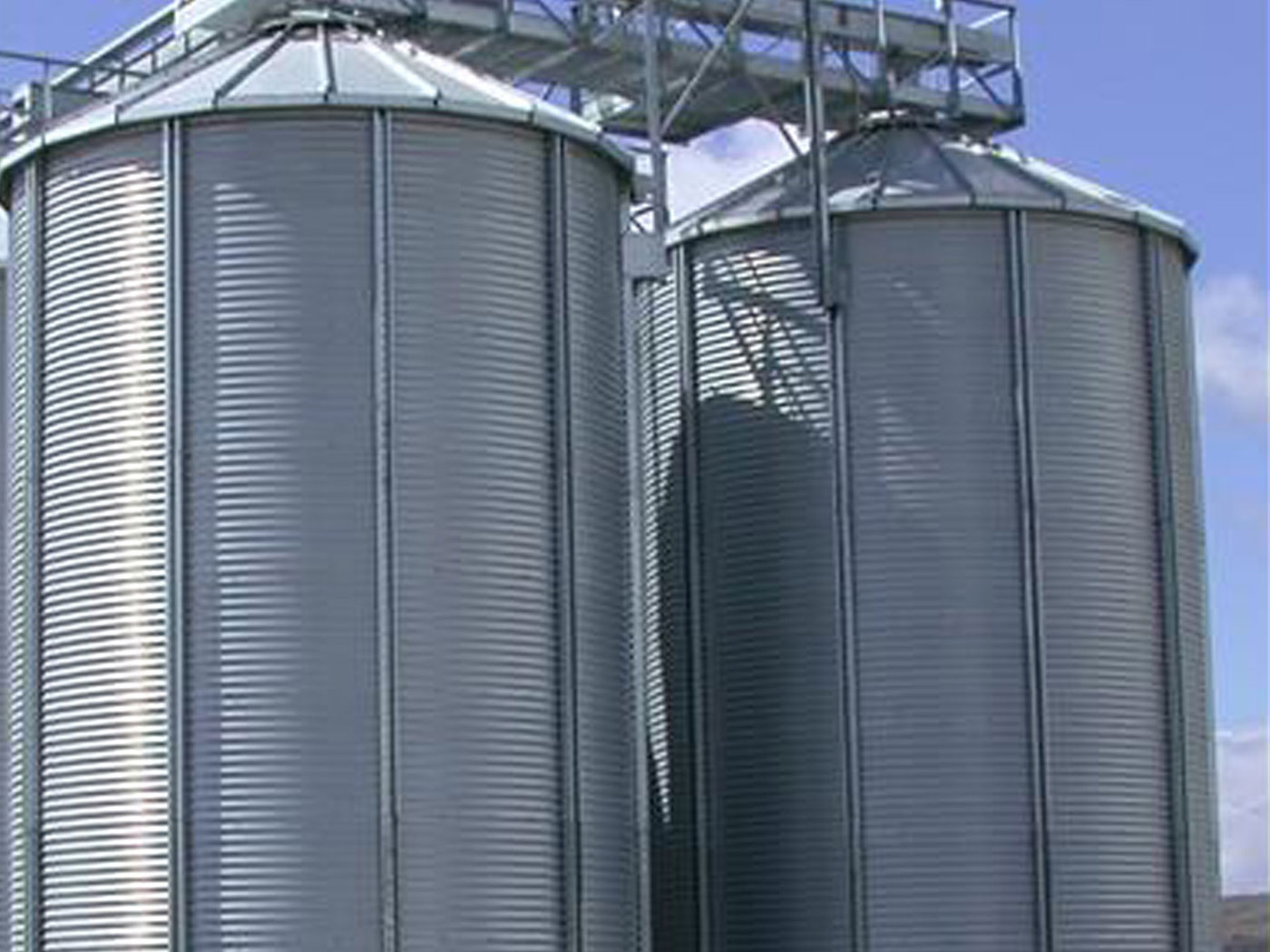

The cylinder is composed of corrugated metal sheet and calendered panels of structural steel with high finish of zincoche it guarantees a long resistance to atmospheric agents.

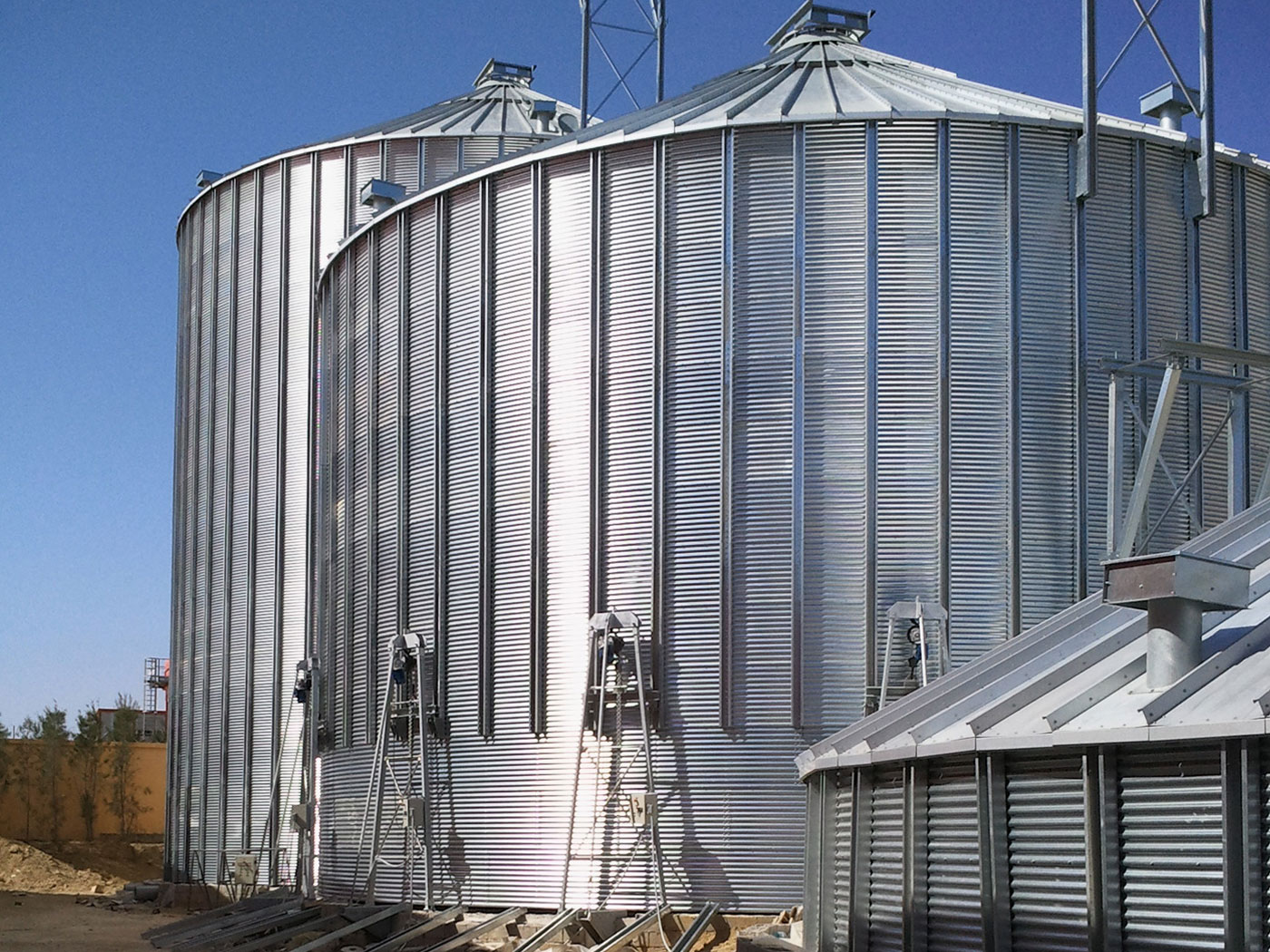

The structure is reinforced externally by sheet steel uprights strutturalepressopiegata of variable thickness and sections.
The assembly of the plates and the uprights is done with special high-strength bolts treated with proceedings against corrosion.
The infiltration of water into the joints of the metal sheets is avoided thanks to the interposition of seals which maintain their characteristics over time.
The sloping roof is composed of trapezoidal panels aluzinc bolted between them with the drip edge.
The aluzinc is a cold-rolled steel with a metallic coating mainly composed of an alloy of aluminum (55%), Zinc (43.4%) and silicon that provides excellent corrosion resistance; Zinc also ensures cathodic protection on cut edges or surface scratches.
The aluzinc has demonstrated corrosion rates 2 times lower in the marine environment, 4 times lower than in the saline environment strongly and 6 times lower than in the industrial environment.
Also maintains its surface appearance unchanged over time and does not present the typical blackening phenomena of galvanized sheet metal.

Standard components:

For max level sensor Central fairing with a crawl and attachment.
Manhole and inspection on the cylinder with double-hinged door inside.
Quick connection for electric coupling with cover at rest protection.
Series of anchor bolts sized for anchoring.
Hardware for high strength assembly with GEOMET® treatment and polypropylene gaskets.

The structure is calculated in accordance with the UNI 10011/80, 10012/67, 10022 CNR.

Technical Features:

MODEL	CAPACITY' SILOS (Mc)																						NUMBER OF RINGS
	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	CYLINDER HEIGHT (Mm)
	5016	5852	6688	7524	8360	9196	10032	10868	11704	12540	13376	14212	15048	15884	16720	17556	18392	19228	20064	20900	21736	22572
360 Ø3600 mm	56	65	74	82	91	100	109	118	126	135	144
460 Ø4600 mm	90	104	117	131	145	159	173	187	201	215	228
550 Ø5500 mm	130	150	170	190	209	229	249	269	289	309	329
640 Ø6400 mm	180	207	234	261	288	315	323	369	396	423	450	477	504	531	559	586
730 Ø7300 mm	237	273	308	343	378	414	449	484	520	555	590	625	661	696	731	767
825 Ø8250 mm	305	349	394	439	484	528	573	618	662	707	752	796	841	886	930	975
920 Ø9200 mm			495	551	607	662	718	773	829	884	940	996	1051	1107	1162	1218
1010 Ø10100 mm			603	670	737	802	871	938	1005	1072	1139	1206	1273	1340	1407	1474
1100 Ø11000 mm			720	802	881	961	1040	1120	1199	1279	1358	1437	1417	1596	1676	1755
1190 Ø11900 mm			851	950	1043	1137	1230	1323	1417	1510	1603	1696	1790	1883	1676	2069	2162	2234
1280 Ø12800 mm			997	1105	1213	1320	1428	1535	1643	1750	1858	1966	2073	2181	2288	2396	2500	2606
1375 Ø13750 mm					1406	1651	1655	1783	1908	2032	2156	2280	2404	2528	2652	2776	2897	3019
1470 Ø14700 mm					1621	1762	1904	2046	2194	2335	2477	2619	2761	2913	3045	3187	3322	3464
1650 Ø16500 mm							2430	2609	2788	2974	3153	3332	3511	3689	3868	4047	4219	4398	4577
1830 Ø18300 mm								3248	3468	3688	3920	4140	4347	4574	4792	5006	5230	5448	5665	5890	6143
1925 Ø19250 mm								3618	3862	4105	4348	4592	4835	5078	5322	5565	5808	6052	6291	6538	6778
2018 Ø20180 mm								3998	4256	4533	4800	5067	5335	5602	5869	6136	6407	6671	6938	7205	7473
2200 Ø22000 mm											5779	6097	6415	6733	7051	7368	7671	7989	8307	8625	8942	9260
2385 Ø23850 mm											6877	7248	7619	7990	8361	8731	9102	9473	9844	10215	10585	10957
